Wheel Parameter:

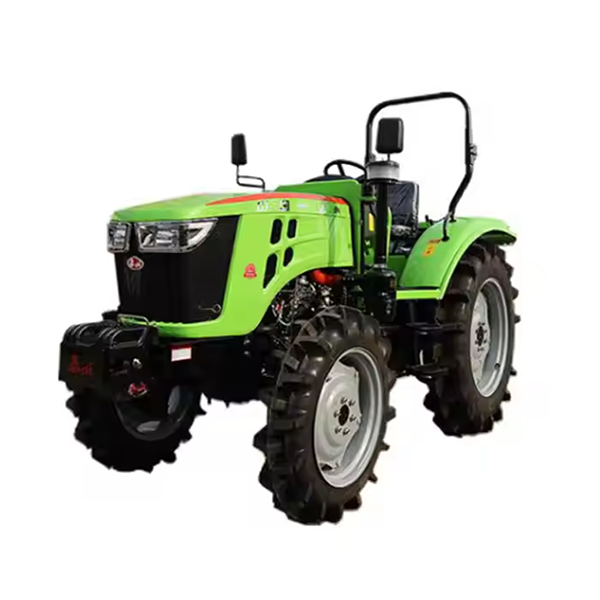

| Model | TAISHAN-704N |
| Drive type | 4X4 Four-Wheel Drive |
| Dimension of The Tractor | |
| The whole machine size mm | 3780*1640*2615 |
| Min. Operation mass (kg): | 2360 |
| Wheel base mm | 2000 |
| Minimum ground clearance (mm) | 430 |
| Front/ Rear wheel tread | 1200,1300/1100,1200,1300(ADJUSTABLE) |
| Tyre size(front/rear) | 8.3-24/11-32 |
| Working device | |
| Three-point-linkage: | Yes |
| PTO/PTO Speed | 540/760 |
| (610mm) kn/Lifting Capacity | |
| Tillage depth adjustment | Comprehensive |
| Transmission system | |
| Clutch | dry type, single action |
| (F+R) No. Of gears | 8 F+2R |
| Shift method | (4+1) x 2 |
| Max. speed | 32.46km/h |
| Gear Position | Right-hand side |
| Engine | |
| Engine Type | XINCHAI,Emission Stage II. |
| ( L ) Displacement | 2.545 |
| Fuel tank capacity (L) | 47 |
| ( g/kw.h) Fuel consumption @ nominal power | |
| Air intake type | turbocharging- Aspirated |
| Air Filter | Three stage oil bath |
Rated Power (HP)
50HP-120HP
Type
Wheel Tractor
Place of Origin
China
Warranty
1 Year
Machinery Test Report
Not Available
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, Pump, Pressure vessel, Gearbox, Engine, Gear, PLC, Bearing
Engine Brand
WEICHAI
Weight
3200 KG
By wheel
4WD
Use
Farm Tractor
Drive Type
Gear Drive
Brand Name
TAISHANGUOTAI
Key Selling Points
Easy to Operate
Drive type
4X4 four-Wheel Drive
Shift method
(4+1) *2
Min. Operation mass (kg)
1520
Wheel base mm
2000
Minimum ground clearance (mm)
430
PTO/PTO Speed
540/760
Max. speed
32.46km/h
Braking system
Mechanical-shoe type
Steering type
Hydraulic Steering
Clutch
dry type, single action
Packaging and delivery
Selling Units:
Single item
Single package size:
5600X3200X3200 cm
Single gross weight:
5600.000 kg
