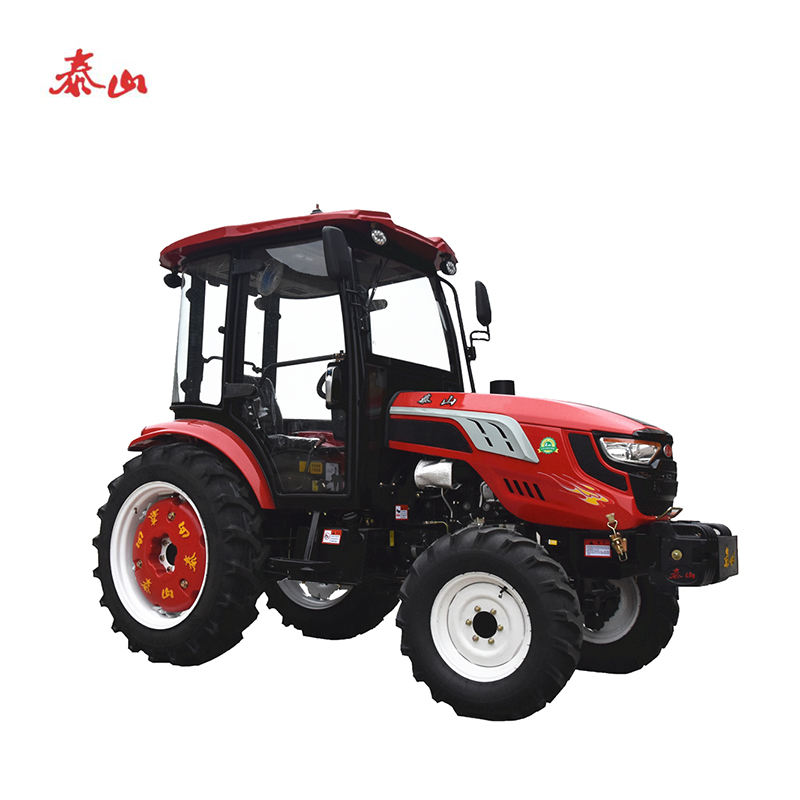

| Model | GT704 | ||
| Tractor | Drive Type | 4WD | |
| Parameters | Overall Dimensions L*W*H (mm): | 4100x1929x2710 | |
| Wheel Track (mm) | Front | 15,801,610 | |
| Rear | 15,301,640 | ||
| Wheel Base (mm) | 2236 | ||
| Ground Clearance (mm) | Under Front Axle | 330 | |
| Under Rear Axle | 330 | ||
| Rated Traction Force (n) | 15000 | ||
| Construction Mass (kg) | 2236 | ||
| Min. Turning Radius (m) | 4.1 | ||
| Theoretical | Forward | 0.46-34.85 | |
| Speed (km/h) | Reverse | 0.62-10.78 | |
| Engine Specification | Model | Dongfanghong LR4A3-T | |
| Type | 4-cylinder, Upright inline cylinder, | ||
| radiator cooling, 4-stroke cycle, | |||
| Rated Power (kW/hp) | 55/75 | ||
| Rated Speed (rpm) | 2200 | ||
| Total Displacement (L) | 4.33 | ||
| Model | none | ||
| Engine for Options | Clutch | single-action , dry constant meshing | |
| Drive | Gear Box | 2*(4+1) sliding gear shift | |
| System | Main Drive | One Pair of Spiral Bevel Gears | |
| Differential | Bevel Gear | ||
| Differential Lock | Sliding pin, foot operated | ||
| Final Transmissions | Gear transmission | ||
| Tire | Front | ||
| Traveling Mechanism | Steering Gear | Rear | 6.5-20 |
| Hydraulic power steering | 14.9-30 | ||
| Brake | drum brake | ||
| Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point (Kg) | ||
| Working | P.T.O. Shaft | 3-Point Suspension | 1300 |
| Device | Rotating Speed (rpm) | Category:II | |
| Spline Size | 540/1000 | ||
| 8-Ø35 or 6-Ø35 Rectangular Spline | |||
| Key attributes | |
| Other attributes | |
| Rated Power (HP) | 70HP |
| Type | Wheel Tractor |
| Place of Origin | Shandong, China |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor |
| Engine Brand | YTO |
| Weight | 3200 KG |
| By wheel | 4WD |
| Use | Farm Tractor |
| Drive Type | Gear Drive |
| Brand Name | Taishan |
| Key Selling Points | High quality, strong stability, customizable |
| After-sales Service Provided | Overseas service center available |
| Color | Red, yellow, blue, green, black and so on |
| Optionals | Sun-shade, cabin, luxury cabin with AC |
| After Warranty Service | Video technical support |
| Local Service Location | Egypt |
| Keywords | Mini Tractor 4wd |
| Wheel Base | 2236 |
| Rated Traction Force | 15000 |
| Construction Mass | 2236 |
| Packaging and delivery | |
| Packaging Details | Iron crate, naked or as customer's requirement |
| Port | Qingdao Port, China |
| Selling Units: | Single item |
| Single package size: | 5600X2800X3100 cm |
| Single gross weight: | 5600.000 kg |
| Supply Ability | |
| Supply Ability | 200 Set/Sets per Day |
