| Tractor Parameters | Model | TC2104 | |
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H (mm): | 5350x3400x3030 | ||
| Wheel Track (mm) | Front | 1900 | |
| Rear | 1700-2300 | ||
| Wheel Base (mm) | 2688 | ||
| Ground Clearance (mm) | Under Front Axle | 400 | |
| Under Rear Axle | 400 | ||
| Rated Traction Force (n) | 32000 | ||
| Construction Mass (kg) | 6400 | ||
| Min. Turning Radius (m) | 7 | ||
| Theoretical | Forward | 3.42-34.03 | |
| Speed (km/h) | Reverse | 2.33-23.22 | |
| Engine Specification | Model | Dongfanghong | |
| Type | 6-cylinder, Upright inline cylinder, | ||
| radiator cooling, 4-stroke cycle, | |||
| Rated Power (kW/hp) | 118/180 | ||
| Rated Speed (rpm) | 2300 | ||
| Total Displacement (L) | 7.5 | ||
| Model | None | ||
| Engine for Options | Clutch | single-action , dry constant meshing | |
| Drive | Gear Box | 16+16 | |
| System | Main Drive | One Pair of Spiral Bevel Gears | |
| Differential | Bevel Gear | ||
| Differential Lock | Sliding pin, foot operated | ||
| Final Transmissions | Gear transmission | ||

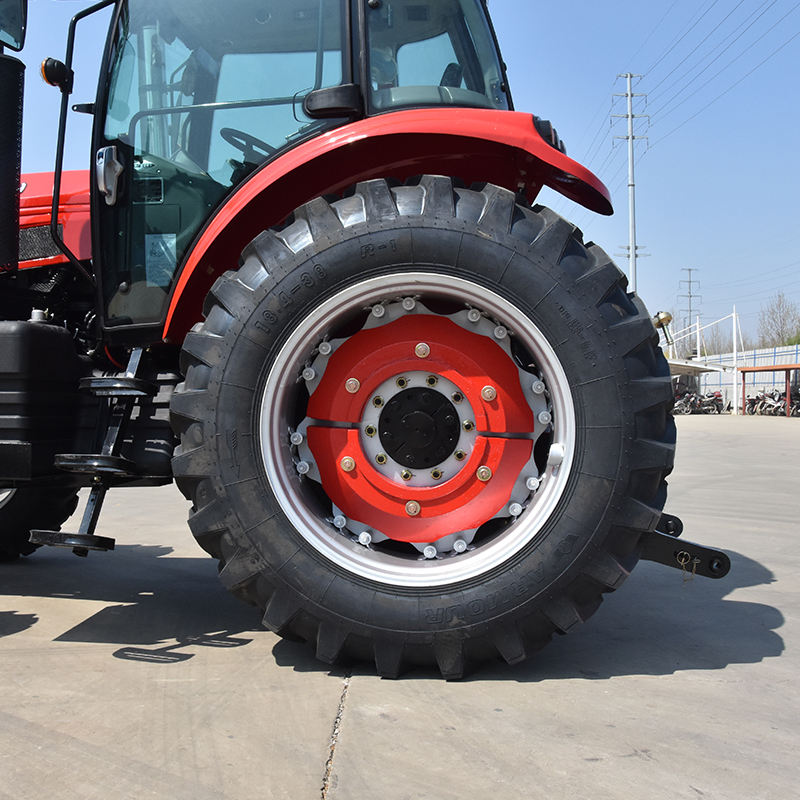

| Tire | Front | ||
| Traveling Mechanism | Steering Gear | Rear | 14.9-26 |
| Hydraulic power steering | 18.4-38 | ||
| Brake | drum brake | ||

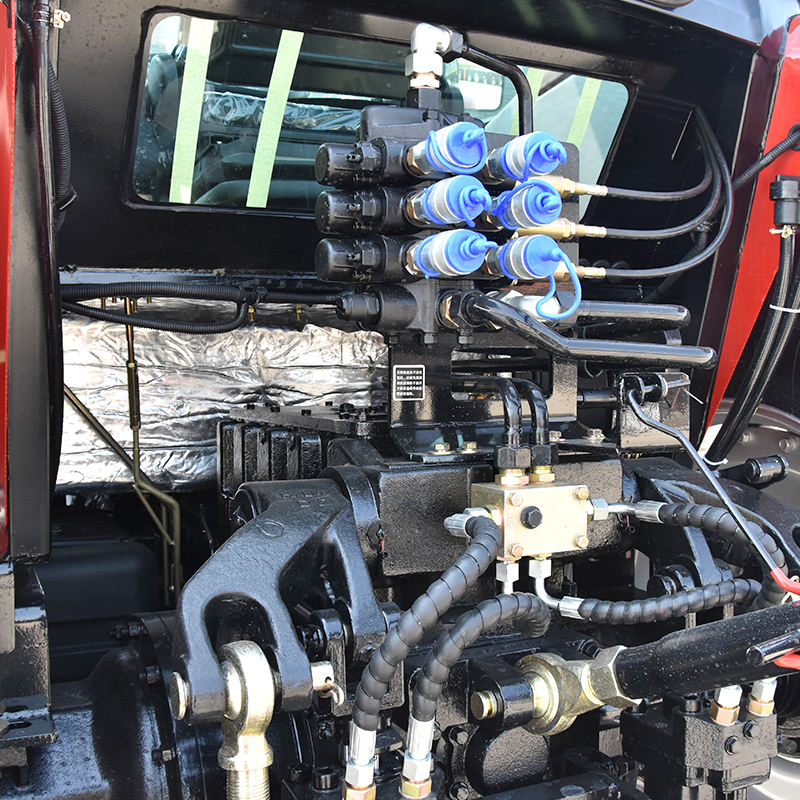

| Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point (Kg) | ||
| Working | P.T.O. Shaft | 3-Point Suspension | 2700 |
| Device | Rotating Speed (rpm) | Category:I | |
| Spline Size | 540/1000 | ||
|
8-Ø35 or 6-Ø35 Rectangular Spline |
|||
| Key attributes | |
| Other attributes | |
| Type | Wheel Tractor |
| Place of Origin | Shandong, China |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 YEAR |
| Core Components | Pump, Engine, Gear |
| Engine Brand | YTO |
| By wheel | 4WD |
| Use | Farm Tractor |
| Drive Type | Gear Drive |
| Brand Name | TAISHAN |
| Key Selling Points | High Productivity |
| Engine | YTO /YUCHAI |
| Clutch | Dual-stage Clutch |
| PTO speed | 540/1000, 760/1000 |

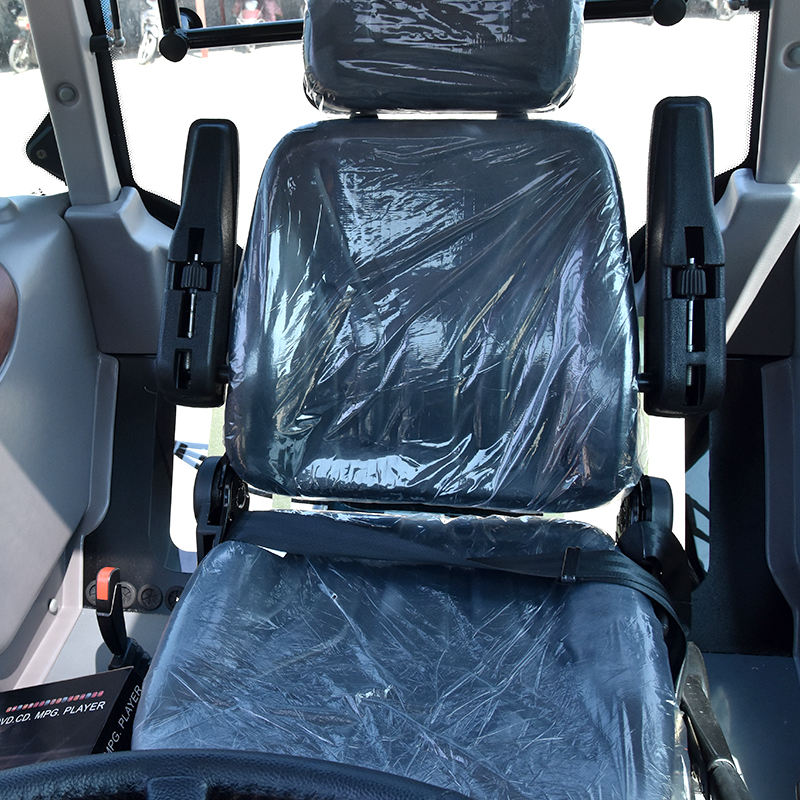

| Cabin | Air Conditioned Cabin |
| Product name | traktor 4x4 mini farm 4wd machinery tractors for agriculture |
| Keywords | tractors for agriculture |
| MOQ | 1 |
| Packaging and delivery | |
| Packaging Details | In nude; |
| Selling Units: | Single item |
| Single package size: | 5600X2800X3100 cm |
| Single gross weight: | 5600.000 kg |
