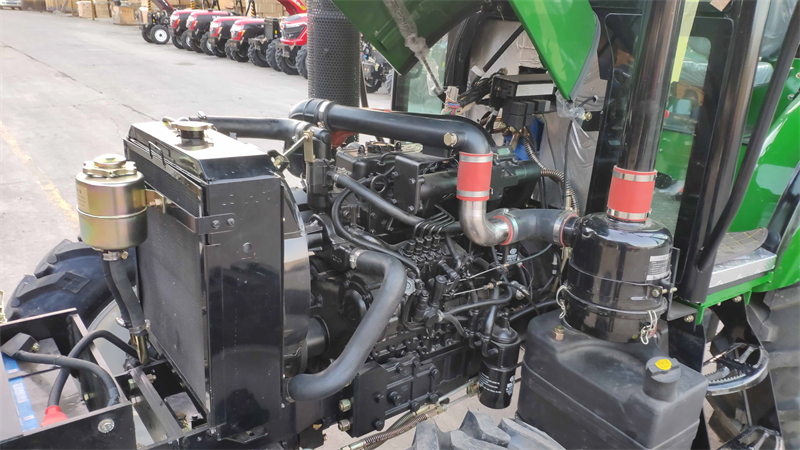

Engine
* 4 cylinder turbocharged diesel engine, Powerful and easy to maintain.
* Could choose china famous brand engine, YTO，Xichai, , Xinchai, LD etc.
* Low fuel consumption and large torque reserve.
* Cooling system effectively reduce engine temperature.
Lifter
* Hydraulic lifter, greater lifting force, the downward pressure is more powerful, which can better press agricultural machinery into the soil.
* 2 groups hrdraulic output, can be connected to agricultural machinery using hydraulic oil.
* 3-piont lift power 1150kg.
Technical characteristics of the tractor TL704
* Reversible gearbox (8 + 8) with differential lock, hydraulic steering and 4-wheel drive.
* PTO speed 540/760 r/min, optional 540/1000 r/min or 760/1000 r/min
* Gear pump flow 32 L/min.
* Dual stage clutch, during gear shifting, PTO works uninterrupted.
Cabin inside
* The 4-post cabin allows the driver to have a wider field of vision.
* Flat floor design is free and comfortable.
* Steering wheel with direction ball makes it easier to operate.
* Shuttle shift makes forward and backward clear at a glance.
* Shock absorption seats, driving on bumpy roads will not have too much shock.
| Model | TL704 |
| Type | 4x4 |
| PTO power (KN) | 34.3 |
| Rated Traction( KN) | 10.5 |
| Dimensions(mm) | 3650×1650×2350 |
| Wheelbase（mm） | 1965 |
| Front and rear track (mm) | 1150/1200-1360 |
| Minimum ground clearance(mm) | 330 |
| Turning circle radius | 3.15±0.30 |
| Weight (KG) | 1828 |
| Clutch | Single or dual stage clutch |
| Gearbox | 8+2 shift / 8+8 shuttle shift |
| Front tire | 6.5-16/7.5-16/7.5-20 |
| Rear tire | 11.2-24/12.4-24/12.4-28 |
| Maximum lifting force at 610mm(KN) | 10.85 |
| Suspension mechanism | Three-point suspension type 1 or 2 |
| Hydraulic output | Optional 1 or 2 groups |
| PTO speed r/min | 540/760 or 540/1000 or 760/1000 |
| PTO type | 6-Ø35 or 8-Ø35 Rectangular Spline |
| Engine brand | Laidong / Xichai / YTO / Yunnei |
| Engine type | Diesel engine, In-line, water-cooled, four-stroke |
| Engine cylinder | 4 cylinder |
| Cabin | Flat floor enclosed cabin, could choose AC |
| Start method | Electric |
| Radiater(L) | 12 |
| Fuel tank(L) | 45 |
| Engine oil pan(L) | 5 |
| Driveline oil (L) | 20 |
| Lifter(L) | 9.5 |
| This parameter table is for reference only, everything is based on actual products | |
| Warranty | 2 years |
| Applicable Industries | Farms |
| Weight (KG) | 1848 KG |
| Showroom Location | Germany, Brazil, Indonesia, Mexico, Chile, Colombia, Romania, Malaysia, Australia, Morocco |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Place of Origin | Shandong, China |
| Condition | New |
| Use | Tractors |
| Brand Name | Tavol |
| Product Name | Tavol 704 tractor matched Agricultural Farm Tractor Cabin for sale |
| Color | Customer Request |
| Certificate | ISO9001 |
| OEM | Accepable |
| Package | Standard Package |
| After Warranty Service | Video technical support |
| Application | Farm Tractor |
| Local Service Location | Germany |
