| Rated Power (HP) | 50HP |
| Type | Wheel Tractor |
| Place of Origin | Shandong, China |
| Warranty | 2 years |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump, Pressure vessel, Gearbox, Engine, Gear, PLC, Bearing |
| Engine Brand | Xichai/YTO |
| Weight | 3000 KG |
| By wheel | 2WD/4WD |
| Use | Farm Tractor |
| Drive Type | Gear Drive |
| Brand Name | Tavol |
| Key Selling Points | High Productivity |
| Horsepower | 25-260hp |
| Engine type | 4 Cylinder Engine |

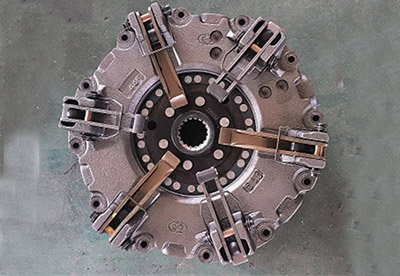

| Clutch | Single or dual stage cluth |
| Tire | 9.5-24/11.2-24/12.4-24/12.4-28 |
| Transmission | Gearbox |
| Gear shift | 8+2 shift/8+8 shuttle shift |
| PTO Speed | 540/760 or 540/1000 |
| Linkage | 3-point |

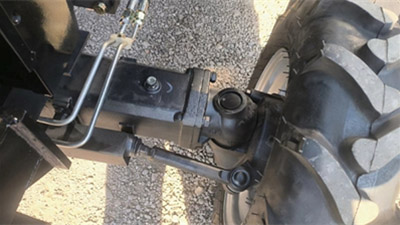

| Steering | Hydraulic Steering |
| Differential lock | Yes |
| Packaging and delivery | |
| Selling Units: | Single item |
| Single package size: | 60X60X60 cm |
| Single gross weight: | 60.000 kg |

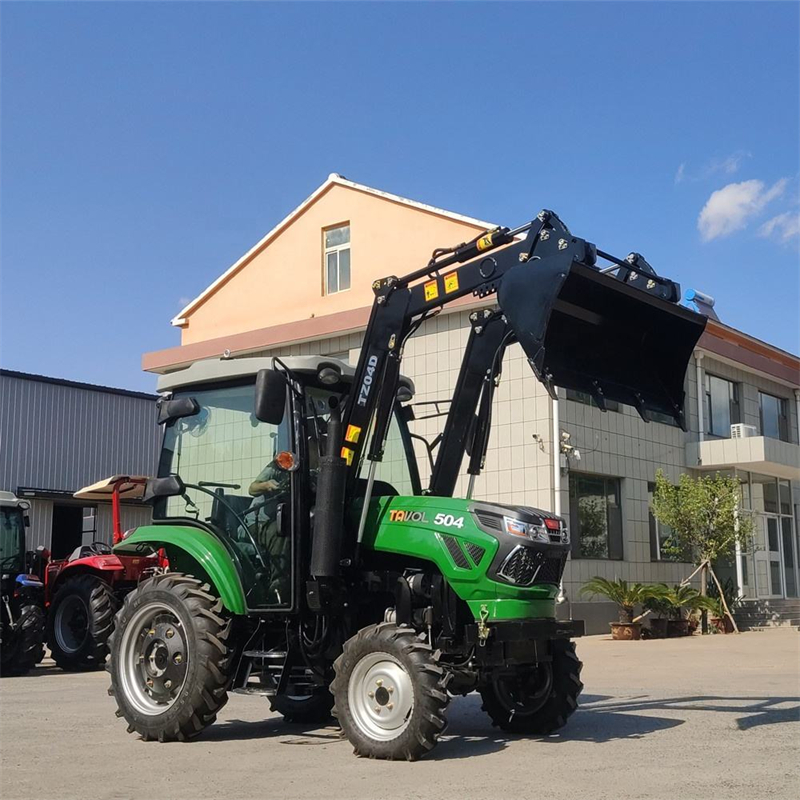

| Tavol-504 | ||||
| Model | Unit | four-wheel drive | ||
| Type | 4*4Wheel | |||
| Calibration traction | kN | 6.5 | ||
| Power output shaft maximum power | kw | 31.2 | ||
| Shape | Long (front counterweight to rear suspension) | mm | 3300 | |
| Width | 1440 | |||
| High (to muffler) | 1870 | |||
| Wheelbase | 1975 | |||
| Size track | Front wheel | 1225/1425 | ||
| Rear wheel | 1160-1300 | |||
| Ground clearance | Minimum ground clearance | 290 | ||
| Turning circle radius | Unilateral braking | m | 2.3 | |
| Not unilateral braking | 3 | |||
| Structural quality | kg | 1317 | ||
| Minimum use quality | 1397 | |||
| Mass distribution | Front wheel | 660 | ||
| Rear wheel | 750 | |||
| Counterweight (optional) | Front counterweight | 48 | ||
| Rear counterweight | 64 | |||
| Walking system | Tire specifications | Front wheel | 6.5-16/7.5-16 | |
| Rear wheel | 9.5-24/11.2-24 | |||
| Tire pressure | Front wheel | kpa | 167-186 | |
| Rear wheel | 118-138 | |||

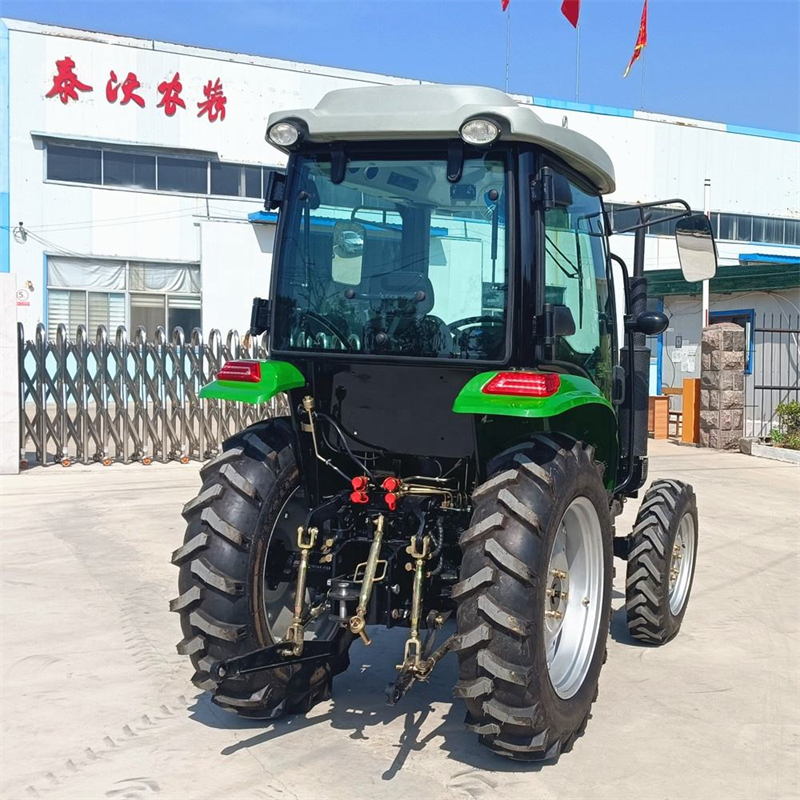

| Working equipment | Suspension mechanism | Rear three-point suspension, category 1 | ||
| Lifting force (frame) | kN | 6.64 | ||
| PTO shaft | Type | Rear, non-independent | ||
| Rotating speed | r/mim | 540/760 | ||
| Perfusion volume | Heat sink | L（liter） | 10 | |
| Fuel tank | 60 | |||
| Engine oil pan | 5 | |||
| Gearbox oil | 20 | |||
| Lifter oil | 9.5 | |||
